- Place of Origin: CHINA
- Brand Name: Taishan
- Model Number: taishan604
- Weight: 2300.000 kg

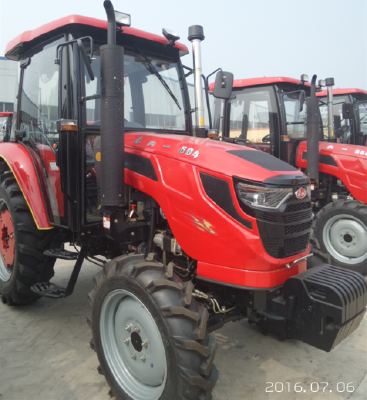

Taishan 604 60hp 4*4 farming tractor
Overall dimensions(L*W*H)(mm):3400*1650*2600
Normal parameters:
Tire sixe 12.4-28/8.3-20,chinese famous engine, 12 12 shuttle shifts, hydraulic steering, double stage clutch, front and rear ballast, PTO 540/1000, ROPS/sunshade/cabin;
- Place of Origin: CHINA
- Brand Name: Taishan
- Model Number: taishan604
- Weight: 2300.000 kg
Tractor Parameters | Model | GT604 | |
Drive Type | 4WD | ||
Overall Dimensions L×W×H (mm): | 3980×1650×2130 | ||
Wheel Track (mm) | Front | 1250 | |
Rear | 1350/1450/1550 | ||
Wheel Base (mm) | 2040 | ||
Ground Clearance (mm) | Under Front Axle | 370 | |
Under Rear Axle | 370 | ||
Rated Traction Force (N) | 13525 | ||
Construction Mass (kg) | 2340 | ||
Min. Turning Radius (m) | 3.8 | ||
Theoretical Speed (km/h) | Forward | 2.46-32.73 | |
Reverse | 2.15-28.69 | ||
Engine Specification | Model | Xinchai | |
Type | 4-cylinder, Upright inline cylinder, radiator cooling, 4-stroke cycle, direct-injection | ||
Rated Power (kW/hp) | 45/60.0 | ||
Rated Speed (rpm) | 2400 | ||
Bore × Stroke (mm) | 98×105 | ||
Total Displacement (L) | 3.168 | ||
Drive System | Clutch | Dual-function, dry constant meshing | |
Gear Box | 3×(4 4) sliding gear shift | ||
Main Drive | One Pair of Spiral Bevel Gears | ||
Differential | Bevel Gear | ||
Differential Lock | Sliding pin, foot operated | ||
Final Transmissions | Planetary reduction gear | ||
Traveling Mechanism | Tire | Front | 8.3-20 |
Rear | 12.4-28 | ||
Steering Gear | Hydraulic power steering | ||
Brake | Dry disc (Multiple) | ||
Working Device | Hydraulic System | Lifting Capacity at 610 mm Behind Lift Point (kg) | 1035 |
3-Point Suspension | Category: I | ||
P.T.O. Shaft | Rotating Speed (rpm) | 540/1000 | |
Spline Size | 6-Ø35 Rectangular Spline | ||
